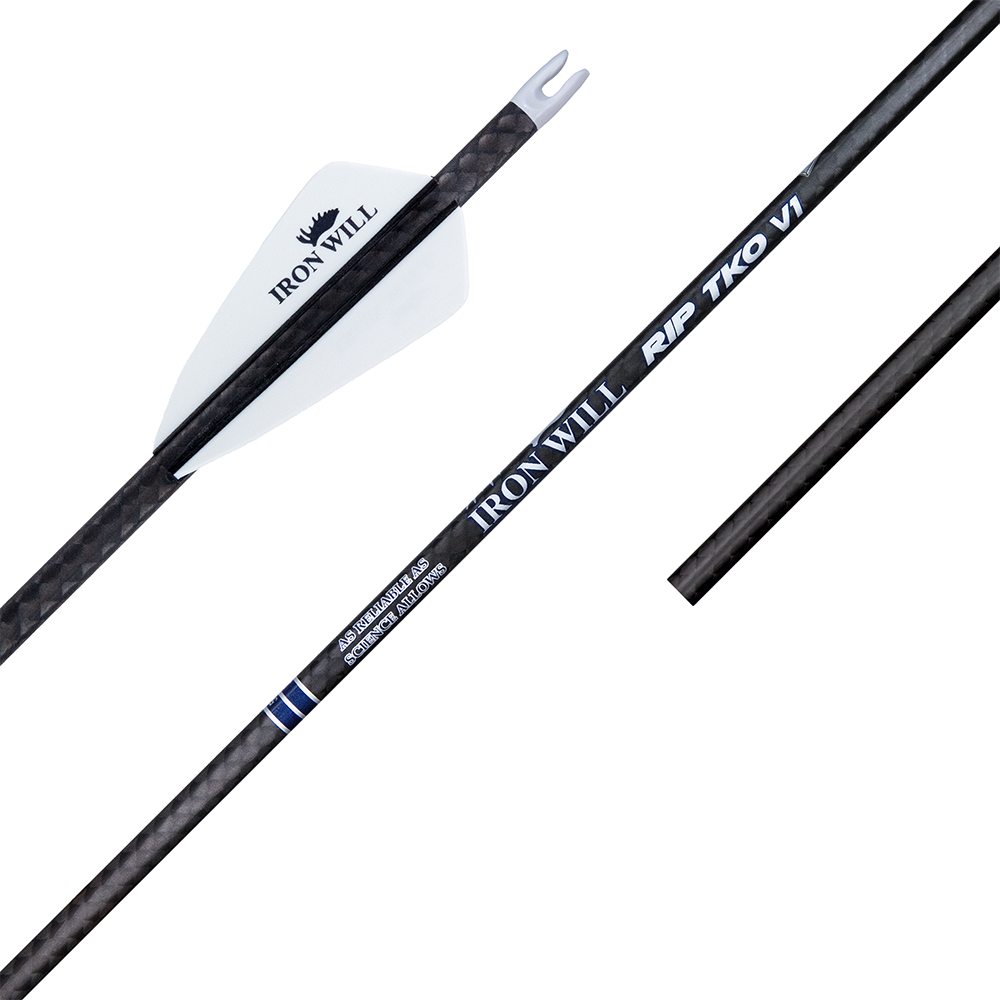

Precision Machined & Custom Built Arrows
Precision Machined & Custom Built Arrows
Precision Machined & Custom Built Arrows
Precision Machined & Custom Built Arrows
Precision Machined & Custom Built Arrows

Precision Machined & Custom Built Arrows

Regular price$99.95
/
Shipping calculated at checkout.

View the Iron Will Arrow Spine Chart

Read our Arrow Setup Recommendations

Contact us for additional Arrow Setup Help.

To gain a better scientific understanding of arrow flight with fixed blade broadheads, we sponsored a university study including extensive computational fluid dynamic modeling as well as empirical testing. Six of the top vanes in the industry were studied along with new designs. The new Iron Will Hybrid Hunter vane performed the best overall when we weighed accuracy, stability, drag, spin-up, wind drift, and sound. We've decided to offer these to our customers in full length shafts as well as precision machine built arrows to provide the most accurate and forgiving arrow setup for our broadheads.

We start with a 5mm Easton Axis shaft which is made in the USA with their pultrusion process for inherently consistent mechanical properties. We then machine fletch three Iron Will Hybrid Hunter vanes for an accurate and consistent 3° right helical orientation.

To provide the most accurate and consistent arrow build possible, we developed a machine to precisely cut and square both ends of the arrow and install our HIT inserts. This never-before-seen precision assures consistent force through the nock at the arrow launch and very accurate alignment from nock to shaft to point for the most accurate flight.

We add AAE IP Nocks standard to our custom built arrows for exceptional strength, consistency, and great string reaction.

HIT (Hidden Insert Technology) is used under license as a registered trademark of Easton Technical Products.

Arrow Weight:
— Easton Axis 5mm 260: 11.5 GPI
— Easton Axis 5mm 300: 10.7 GPI
— Easton Axis 5mm 340: 9.5 GPI

Arrow Straightness:
— Easton Axis 5mm Match Grade: ±0.001"
— Easton Axis 5mm: ±0.003"

Hybrid Hunter Vanes:
— 3° Right Helical, Three Fletch
— 6.4 grains each

Nocks:
— AAE IP Nock (White): 8 grains

Arrow Components

Precision Machine Built

To provide the most accurate and consistent arrow build possible, we developed a machine to precisely cut and square both ends of the arrow and install our HIT inserts. This never-before-seen precision assures consistent force through the nock at the arrow launch and very accurate alignment from nock to shaft to point for the most accurate flight.

Nocks

For the most precise arrows, we add AAE IP Nocks standard to our custom cut arrows for exceptional consistency and great string reaction. These nocks connect the arrow shaft closer to the string than traditional nocks, which results in a more precise and repeatable arrow send-off.

Arrow Length

To find your minimum arrow length, mark your arrow in front of your rest at full draw and then add 0.7 inch for 10 grain and 1.0 inch for 25 grain Impact Collars to make sure the Impact Collar doesn't contact your rest.

Our machine cut arrow lengths are measured from carbon to carbon, and don't include the point length or nock length.

HIT Inserts

Our machine is engineered to build arrows with Iron Will HIT Inserts, so your broadheads align with your arrow's inner diameter for the most accurate flight.

Impact Collars

Designed to be built with Iron Will Impact Collars for a stronger arrow connection and extra front-of-center (FOC) weight options.

Flight Optimized Field Points

Iron Will Field Points are design-optimized using fluid dynamic modeling to match broadhead flight characteristics more closely than ordinary field points.

arrow vane model

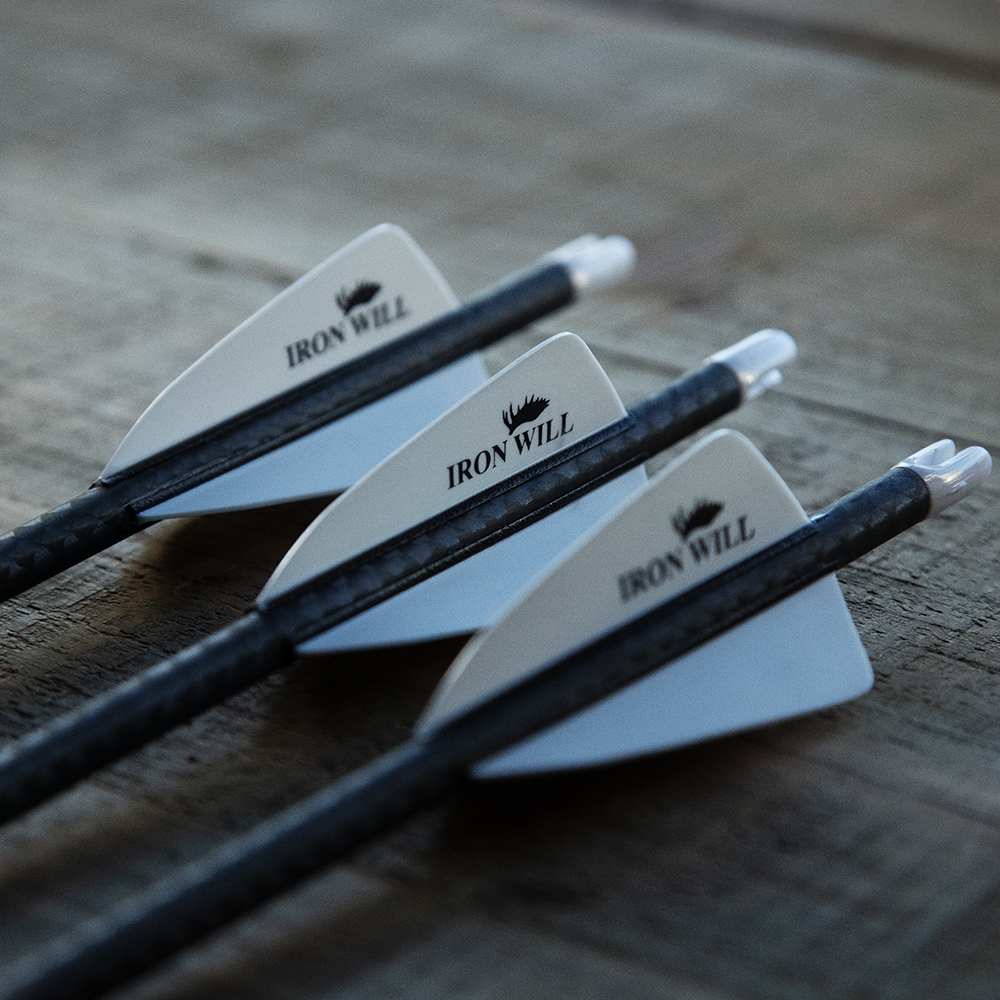

3° Precision Machine

Fletched

For ideal arrow and broadhead flight, we precision machine fletch every arrow with three 3° right helical Iron Will Hybrid Hunter vanes.

These vanes were developed through extensive computational fluid dynamic modeling as well as emperical testing to provide the best arrow flight with broadheads.

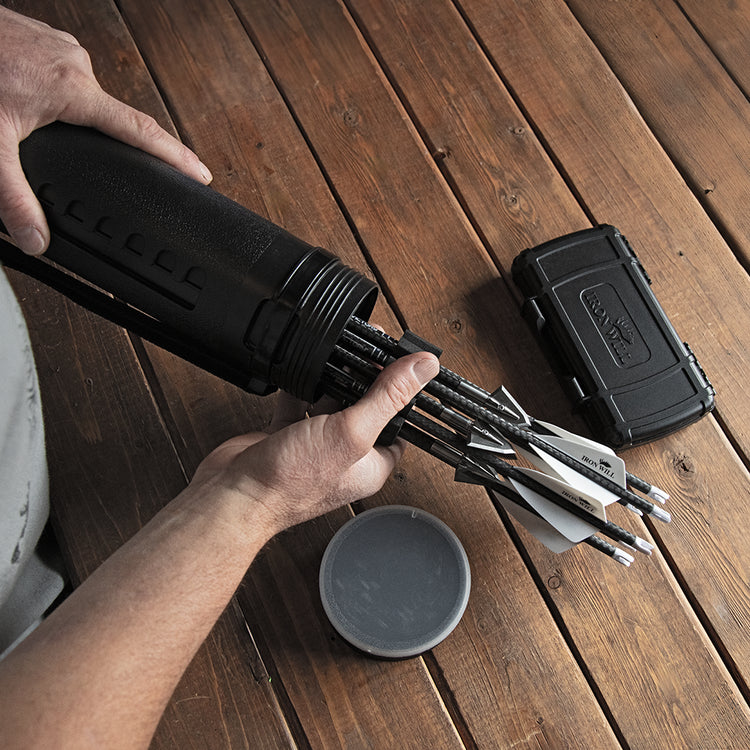

12 Arrow

Travel Case

Lightweight and compact — to ensure your arrows make it from home to the field. Whether you're heading in deep on horseback, navigating airport handling, or simply placing them in the back of the pickup, your hunt is too important to risk breaking arrows on the way there. Designed to hold 12 arrows so you can hunt hard and with confidence knowing you've got backups at-the-ready if the unexpected happens.

This travel case is automatically included with custom cut 12 packs.

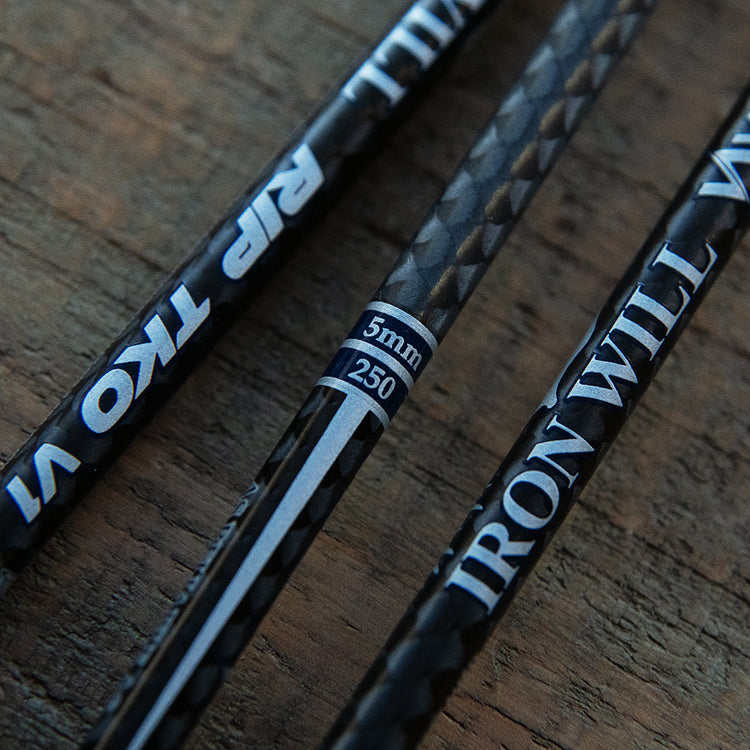

5mm

Easton Axis Arrows

Made with high-strength carbon-composite fibers and a Match Grade straightness of ± 0.001," Easton Axis arrows are made in the USA with their pultrusion process for inherently consistent mechanical properties.

“When it comes to reliable arrow flight, Iron Will broadhead and component tolerances go a long way towards ensuring the most accurate flight and deepest penetration possible. Through our new machine built arrow process, we can mitigate arrow build inconsistencies like never before. Couple this with a vane configuration scientifically proven to provide great accuracy and stability and the result is the most repeatable and reliable arrow build for bowhunters.”

— Bill Vanderheyden, Owner and Lead Engineer

Customer Reviews

Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Brandon

Received my arrows today took them out to shoot right away and was extremely impressed! I am a new shooter and went off the recommendation from the folks at Iron Will and let's say they were spot on. These arrows took just a few shots to get them locked in shooting 1 inch groups at both 20 and 30 yards as I get better at those I plan to stretch out further but am extremely impressed already. Not to mention the arrows also penetrated 8 inches deeper into my target than the arrows the bow shop hooked me up with when I bought the bow. And that's just the field points. I also got the single bevel broadheads to group fairly well on these arrows too. I'm shooting 60# w/ 28" draw. And these 27.75" 5MM 340g spine with the 25g HITT insert, 25g impact collar, 100g field pt or broadheads is an absolute champ! I highly recommend these! Can't wait to test them out on deer next season!

A
Alberto

Great product packaging was amazing exactly how they said workmanship is outstanding

C
Christopher

Love the arrows great work

R
Robert J Chandler
Instant Accuracy Impovment

Received these and I was able to shrink my groups down by about 30% with fliers (other than user error) basically eliminated. Will use these for sighting in and hunting and demote my others to practice.
Not cheap but you get what you pay for.

Our custom arrow team (creating jobs in the USA) takes great pride in their work. Thank you for noticing. Appreciate the review.

A
Austin

Excellent build
